J Type Thermocouple Wire with High Temperature Insulation. Ceramic Fiber, Ceramic Fiber with Mica, High Temp Fiberglas. 1200ºF to 2200ºF Continuous Operating Environments
Type J Thermocouple Wire
High Temperature Insulation
High Quality Type "J" Duplex Thermocouple Wire
Highest Temperature Insulation Available
Choice of Wire Gauge, Insulation & Spool Length
Color Tracers for EASY Identification
ANSI Color Code: Positive - White Negative - Red Tracer
Overall - White with Trace Color

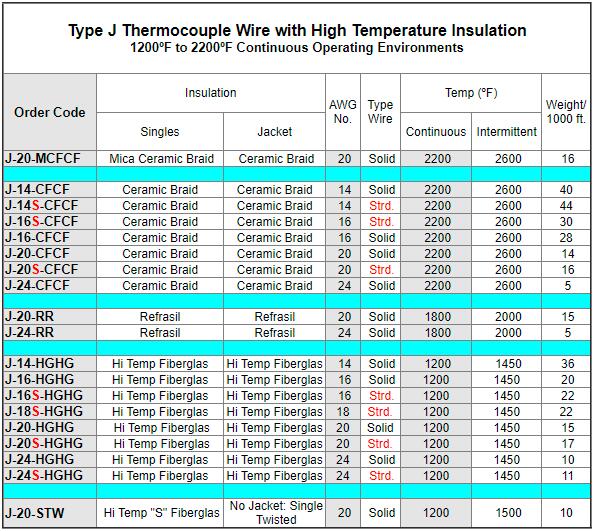

To Order, use the table below:
Select the "Order Code" for the type of insulation and gauge wire you need.
Just Select the "Order Code" from the "Options" below with the type of insulation you need, then add the Length to the end of the order code. Price is listed to the right of the "Option" selected.
Example: J-20-CFCF-25 Is type J-20-CFCF; 25 feet in length.
Example: J-14-HGHG-1000 Is type J-14-HGHG; 1000 feet in length.
Example: J-20S-CFCF-25 Is type J-20S-CFCF; 25 feet in length. Stranded wire
Example: J-20S-CFCFS-25 Is type J-20S-CFCFS; 25 feet in length. Stranded wire with SS Overbraid
